产品名称:笔记本USB3.0 ExpressCard转接卡
型  号:HT-T312NEC

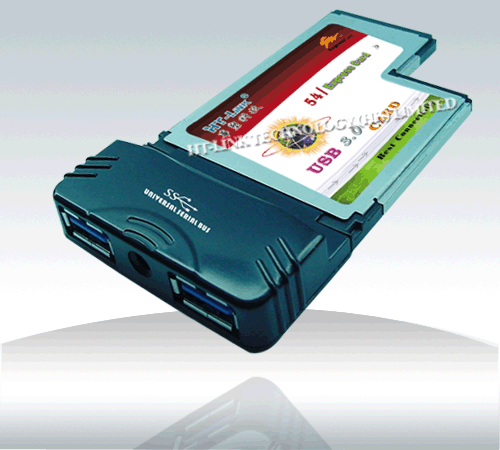

 点击查看大图片

As the trendy of IT technology, USB3.0 interface can deliver bandwidth and features required by PCs, consumer electronics and communications devices. Standard USB3.0’s data transfer rate can up to 5Gbps—10 times faster than USB2.0, while it is backward compatible with current USB device features.
USB3.0 ExpressCard Adapter can make the users be able to add two additional Super-Speed USB3.0 ports to their notebooks or desktops. Plug and play feature allows HT-312 to connect kinds of USB peripheral instantly and conveniently, such as MP3 player, external writer, external storage devices, digital cameras, video devices, webcam, networking and so on.

Product: USB3.0 ExpressCard Adapter
Model: HT-T312NEC
Interface: ExpressCard
Controller: NEC μPD720200
Weight: 40g
Dimension: 54.6*104.2*12.7mm(2.15 * 4.10* 0.5″)
Manufacturer: Made in China

Features:
1. Fully compliant with ExpressCard Specification 1.0.
2. Fully single-lane (or x1) PCI Express throughput
3. ExpressCard/54 form factor module
4. Compliant with Universal Serial Bus 3.0 specification Revision 1.0.
5. Compliant with Xhci (eXtensible Host Controller Interface) specification Revision 0.95.
6. Supports simultaneous operation of multiple USB3.0, USB 2.0 and USB 1.1 devices
7. Supports USB data transfer rate of 1.5/12/480/5000 Mbps
8. Expands two external USB3.0 Super-Speed ports on the system
9. Built-in DC Jack connector for receiving extra power to meet USB3.0+5V/900mA power output standard.
10. Hot-swapping feature allows you to connect/disconnect devices without powering down the system
11. Driver supports for Microsoft Windows 2000, XP, Vista, and 7 operation system
12. Certified by CE, FCC, RoHS, and Microsoft WQHL approval.

System Requirements:
supports Windows 2000/XP/2003/Vista/7, (32/64-bit)

System Environment:
1. Operating Temperature: 0°C ~57°C
2. Operating Humidity: 5% ~95%RH
3. Operation Voltage: +3.3V
4. Storage temperature: -20°C ~85°C
